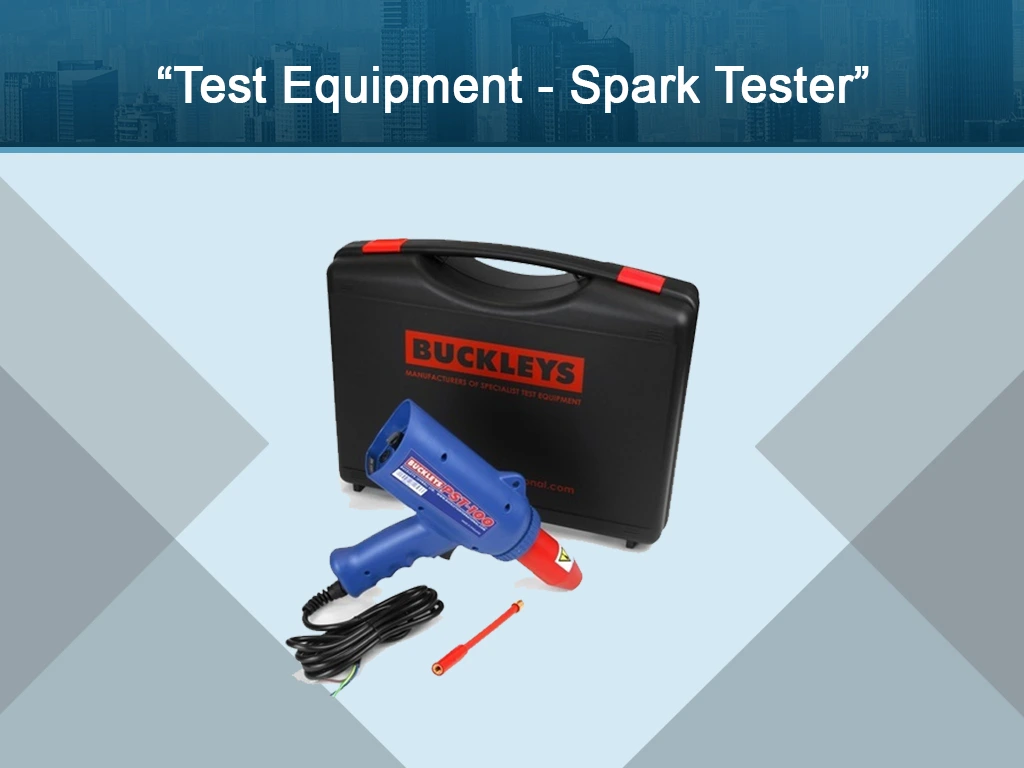

Spark tester kit

Author

Date Created

Test Equipment

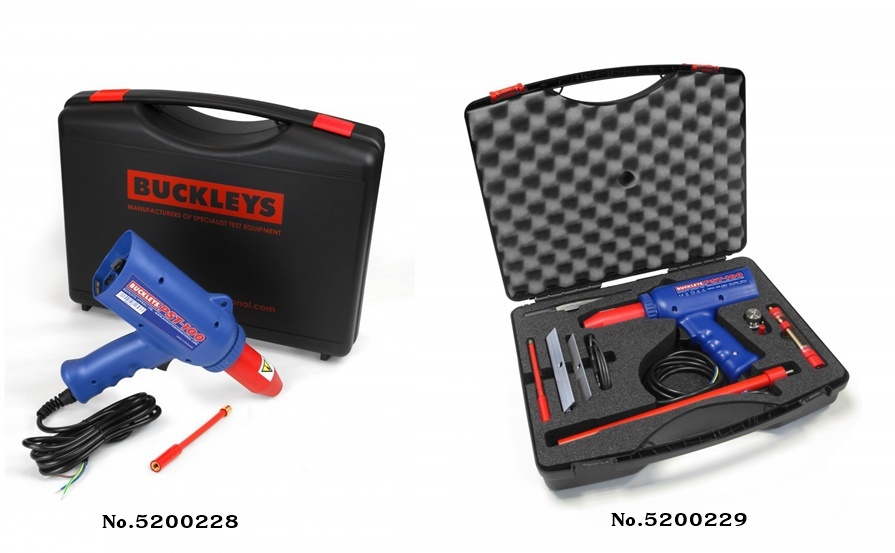

The whole kit will be supplied in a robust plastic carrying case
  • fast and save leak prove for welding seams and tanks
  • contactless spark production
  • maintenance free
  • integrated stabilization board
  • independent work by fluctuating voltage
  • Markings: CE

The Unique spark tester PST100 to quickly test welds for watertightness. Thicknesses between 3mm and 30mm can be tested with this spark tester.

With the help of the high-frequency tester PST100, you can quickly and safely determine whether welds; receptacles, lacquer layers and / or the processed layers are closed. Thanks to the contactless spark generation, the device is maintenance-free, constant and ready for frequent use. The built-in stabilizing circuit allows the device to operate independently of fluctuations in the mains voltage.

Applications:

  • Welded plastic joints
  • Tank lining
  • Vulcanised rubber lining
  • Pipeline & value assemblies
  • Plastic fabrication
  • Geomembrane patching repair

Technical data high frequency spark tester PST100

Output voltage range: 10-55kV
Output: pulsed ring
CE compliant
Mains voltage: 230V AC 50/60 Hz
Weight (Unit only): 1.05Kg
Dimensions (unit only): 6cm x 20cm x 27cm
Packed weight (basic kit): 1.4Kg
Dimensions (packed): 41cm x 36cm x 14cm
