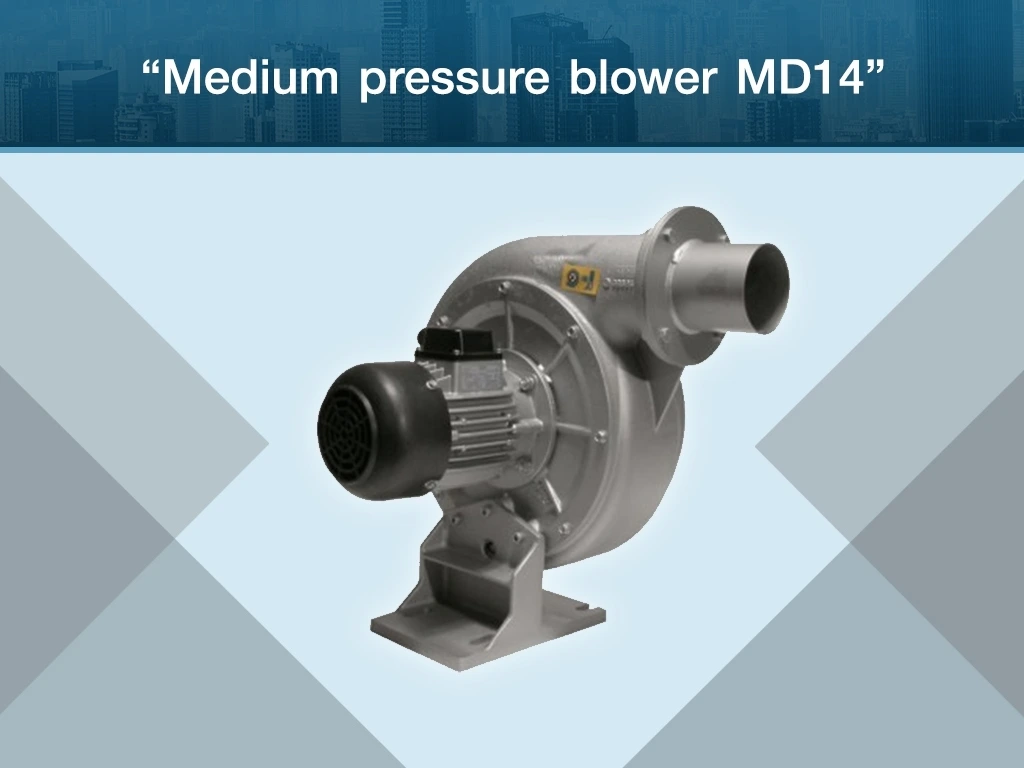

BAK Medium Pressure Blower Type MD14
- high performance at compact design
- logical performance graduation
- long service life with ow operation costs
- high efficiency
- favourable noise characteristics
- robust and hydrodynamic housings
- miantenance-free
- compact design
- completely oil-free
The operating temperature of the high pressure blower may not exceed 60 °C andThe operating temperature of the medium pressure blower may not exceed 80 °C
Special versions of the blower can have a temperature stability of up to a maximun of 180 °C (medium pressure blower) On request, the blower are also available for the use of frequency converters for speed control. Here , the motors are provided with a reinforced coil insulation. The technical data remains uncharged.
In the standard version the blowers are provided with stainless steel filter on the intake side , which can be reused after it has been cleaned with the compressed air. When a fine filter is used , the stainless steel filter can be removed.

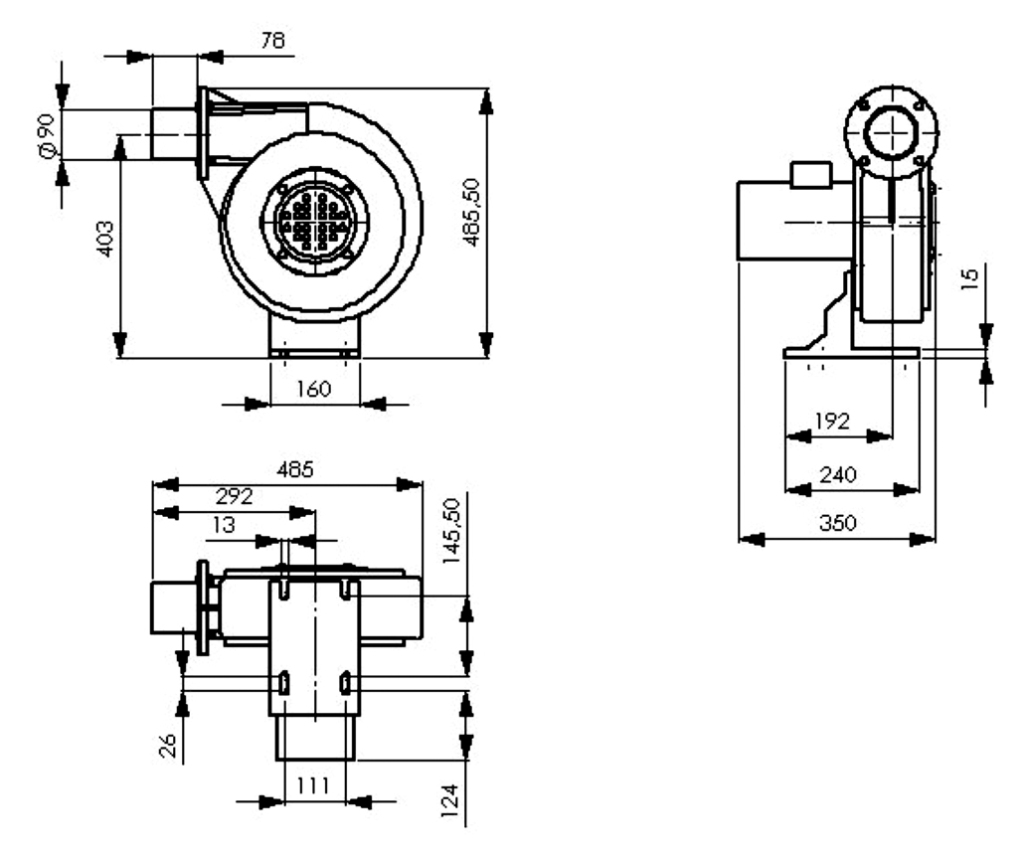

Drawing
